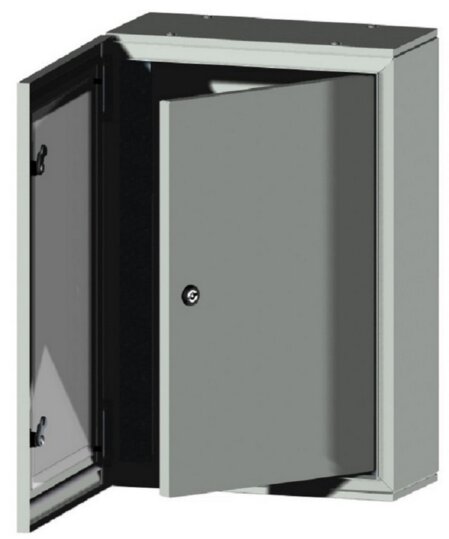

ISTRUZIONI DI MONTAGGIO DOPPIA PORTA, ACCOPPIAMENTO , TETTUCCIO E ZOCCOLO - Copia
PRODOTTI > ARMADIETTI (CASSE)
Istruzioni di montaggio
Seleziona il componente
| Codice: | N°Moduli/fila | |||
|---|---|---|---|---|
| MBM3040 | 300x400 | 250 | 340 | 2X12 |
| MBM3050 | 300x500 | 250 | 440 | 3X12 |
| MBM4050 | 400x500 | 350 | 440 | 2X18 |
| MBM4060 | 400x600 | 350 | 540 | 4X18 |
| MBM5060 | 500x600 | 450 | 540 | 4X22 |
| MBM5070 | 500x700 | 450 | 640 | 4X22 |
| MBM6080 | 600x800 | 550 | 740 | 5X28 |
| MBM6010 | 600x1000 | 550 | 940 | 6X28 |
| MBM8010 | 800x1000 | 750 | 940 | 6X38 |
| Codice | ||||
|---|---|---|---|---|
| STM3040 | 300x400 | 2x12 | 24 | |
| STM3050 | 300x500 | 3x12 | 36 | |
| STM4050 | 400x500 | 3x18 | 54 | |
| STM4060 | 400x600 | 4x18 | 72 | |
| STM5060 | 500x600 | 4x22 | 88 | |
| STM5070 | 500x700 | 4x22 | 88 | |
| STM6080 | 600x800 | 5x28 | 140 | |
| STM6010 | 600x1000 | 6x28 | 168 | |
| STM6012 | 600x1200 | 0x0 | ||
| STM8010 | 800x1000 | 6x38 | 228 | |
| STM8012 | 800x1200 | 0x0 |
| Codice | |||
|---|---|---|---|
| PNM4010 | 400 | 100 | NP |
| PNM5010 | 500 | 100 | NP |
| PNM6010 | 600 | 100 | NP |
| PNM8010 | 800 | 100 | NP |
| PNM4020 | 400 | 200 | NP |
| PNM5020 | 500 | 200 | NP |
| PNM6020 | 600 | 200 | NP |
| PNM8020 | 800 | 200 | NP |
| PNM5040 | 500 | 400 | NP |
| PNM6040 | 600 | 400 | NP |
| PNM8040 | 800 | 400 | NP |
| Codice | |||
|---|---|---|---|
| PAM4020 | 400 | 200 | 18 |
| PAM5020 | 500 | 200 | 22 |
| PAM6020 | 600 | 200 | 28 |
| PAM8020 | 800 | 200 | 38 |
| PAM4040 | 400 | 400 | 36 |
| PAM5040 | 500 | 400 | 44 |
| PAM6040 | 600 | 400 | 56 |
| PAM8040 | 800 | 400 | 76 |
| PAM6060 | 600 | 600 | 84 |
| PAM8060 | 800 | 600 | 114 |
